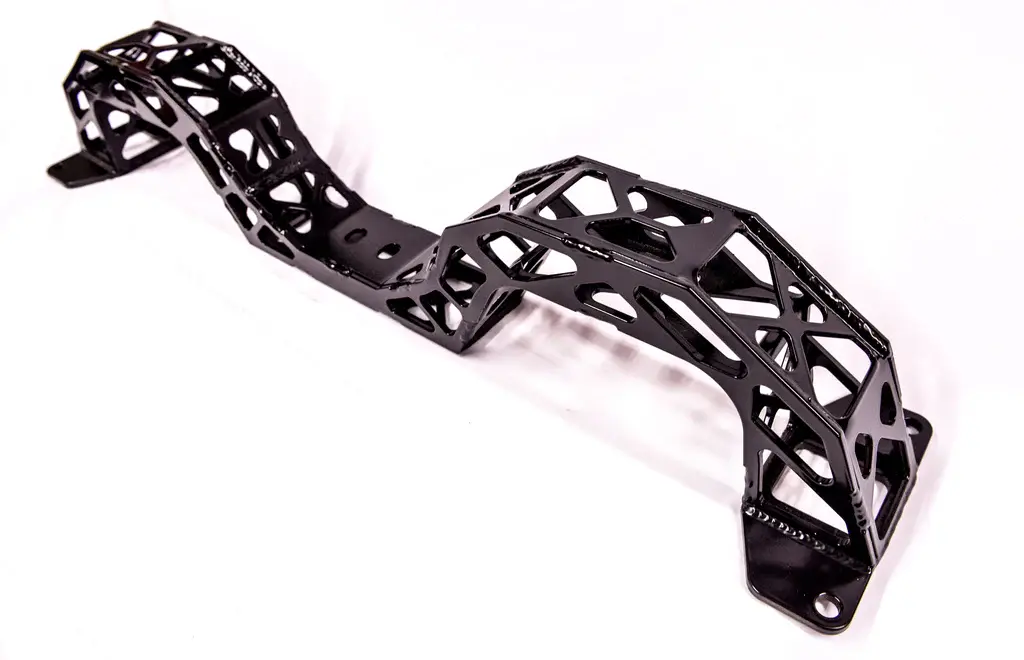

1963-1987 Chevrolet/GMC C10 C20 C30 Dual Exhaust Transmission Crossmember

1963-1987 Chevrolet/GMC C10 C20 C30 Dual Exhaust Transmission Crossmember

$405.00Price

This is the Animal's line Exo series transmission cross member.  This cross member is built based on the Energy Suspension 3.1108 mount. It will fit a number of GM transmissions by sliding the cross member forwards or back in your frame and drilling four(4) 3/8" holes for mounting. Shims are included for between the cross member and trans mount to correct for drive line angle issues should there be any. Templates are included to assist in drilling mounting holes. Dual exhaust cutouts leave lots of room for exhaust coming off long tube headers or other options (see product photos for example)



The cross member is extremely light and very strong.



The cross member is plasma CNC cut, fitted, mig welded and powder coated all in house.



We have fitted and installed the cross member in a 63-72 frame and 73-87 frame.

Transmissions we have tested with crossmember:

  • TH350

  • TH400

  • 700r4

  • 200r4

  • 4L60e

  • 4L80e

  • 6L80e

  • 6L90e

  • AR5

  • Should have no issue with other GM transmissions that accept the Energy Suspension 3.1108 mount





NOTE: Paired with our LSx swap engine mounts and this cross member, a 6L80/90e 6 speed automatic WILL clear the bottom of the cab in a 73-87 squarebody application with lots of room.



Powdercoating unavailible at this time





Designed, built and assembled in Canada



PROUD TO BE CANADIAN
